Erosion & Sediment Control Design

Why Proper E&SC Design Matters

Every land disturbing activity in the Southeast requires an approved Erosion and Sediment Control plan before the first shovel of dirt moves. E&SC isn't a bureaucratic checkbox — poor erosion control leads to downstream sedimentation, permit violations, stop-work orders, and significant fines that can halt a project for weeks or months.

Regulators in North Carolina, South Carolina, and throughout the Southeast have intensified scrutiny of land disturbance activities in recent years. Projects that rely on generic, cookie-cutter E&SC plans frequently receive deficiency comments requiring redesign and resubmission — delaying construction starts and adding cost. Plans that aren't constructable in the field create inspector compliance issues regardless of what the plan shows on paper.

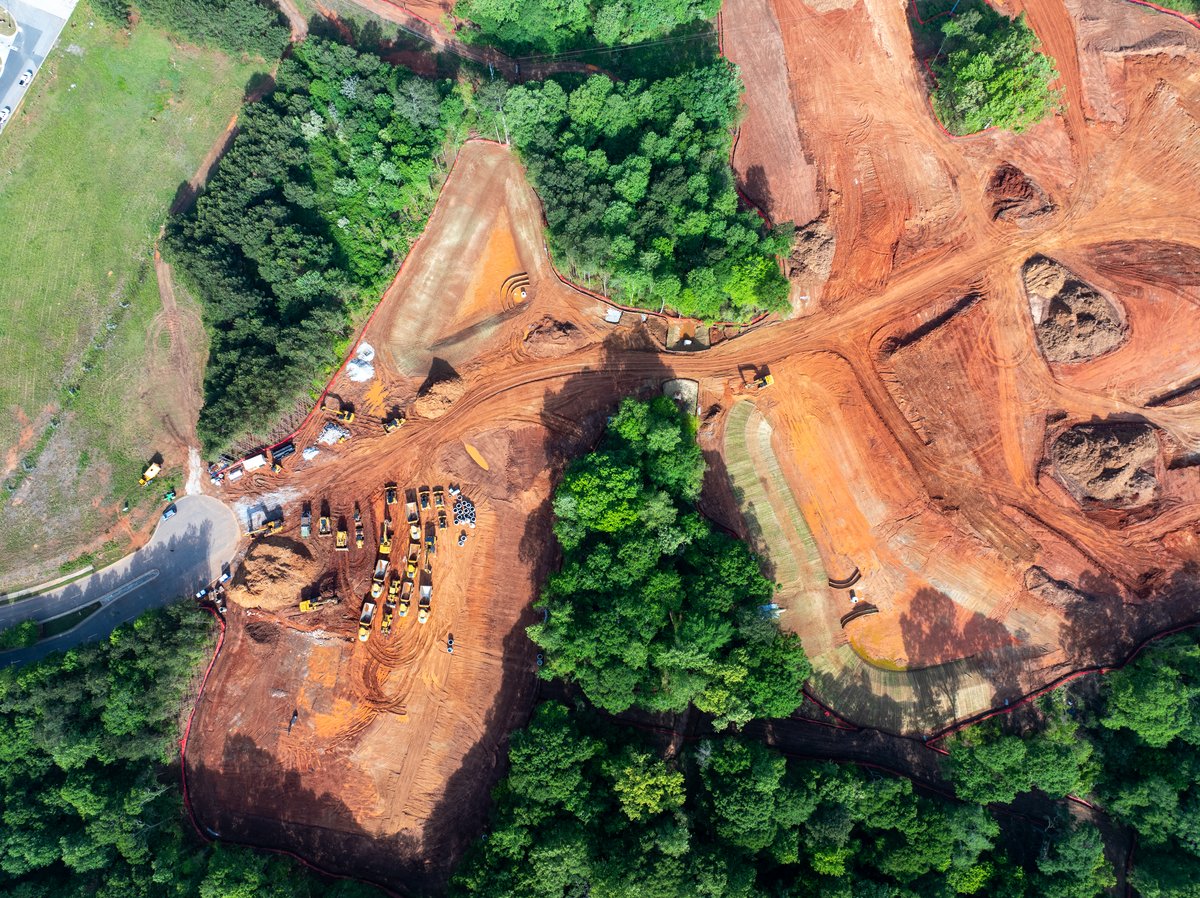

Hagen Engineering designs E&SC plans that are engineered for the specific site — reflecting actual topography, drainage patterns, construction sequencing, and contractor field realities. The result is a plan that passes agency review, satisfies inspectors in the field, and keeps your project moving.

• NPDES permit preparation and submittal
• Plan review response and agency coordination
• Phased sequence of construction documentation
• Sediment basin and trap design
• Check dam and water bar design

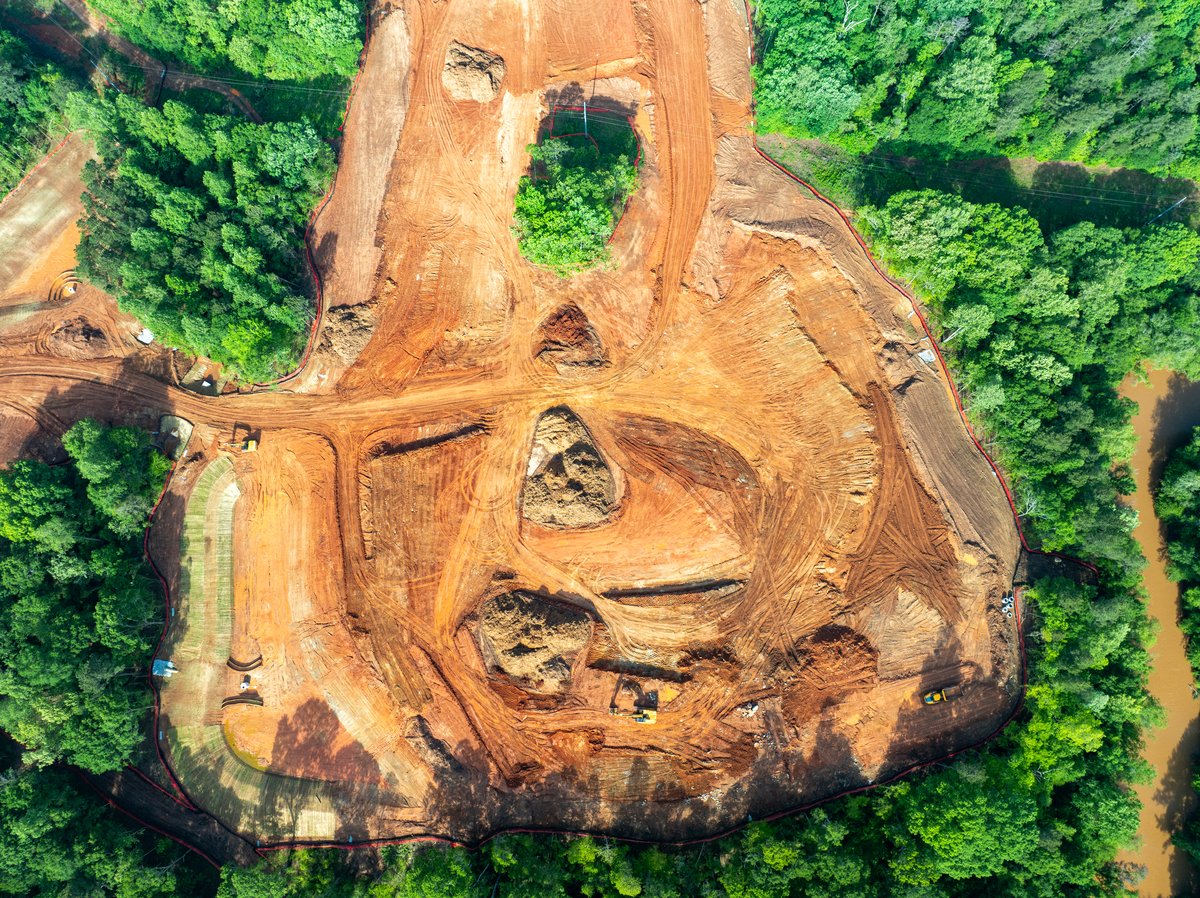

• Silt fence specification and placement
• Self-inspection reporting forms (NCDEQ and SCDHEC compliant)
• As-built E&SC documentation and permit close-out

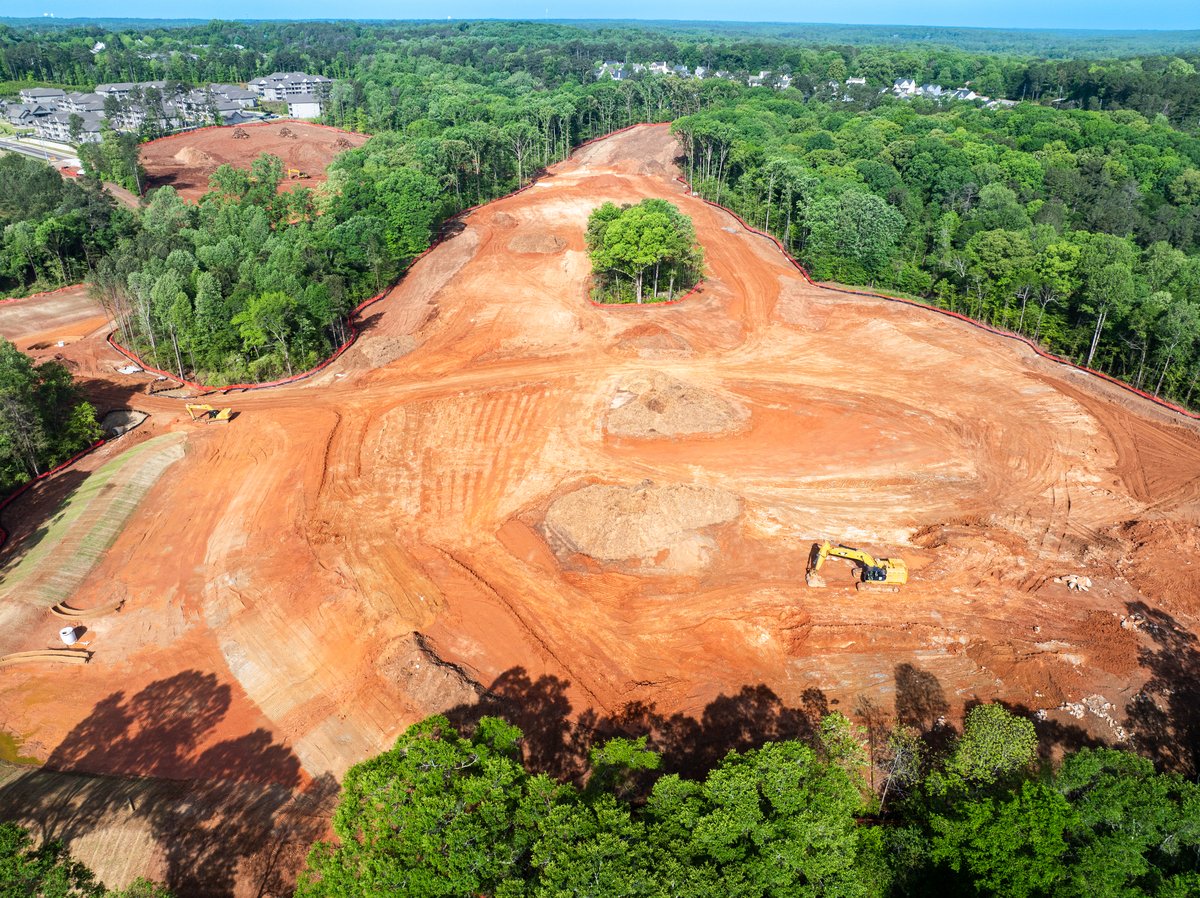

Phased Construction Sequencing

Effective erosion control is not a single plan drawn once at permit submittal — it is a dynamic sequence of measures that must be installed, maintained, modified, and removed in coordination with construction activities. A sediment basin that protects a graded slope during rough grading may need to be relocated as site work progresses. Silt fence lines that protect perimeter areas early in construction must be maintained as grading approaches the boundary.

Hagen Engineering prepares phased E&SC plans that show measure installation, maintenance, and removal at each major construction milestone. Phased plans give contractors a clear roadmap for field compliance — reducing inspector findings and preventing the costly stop-work orders that result from non-compliant sites.

We coordinate E&SC phasing with overall site grading and construction sequencing, ensuring erosion measures are in place before ground disturbance occurs and remain effective throughout each phase. Self-inspection forms developed alongside phased plans give site supervisors the documentation tools required for state compliance reporting.

Sediment Basin & Trap Design

Sediment basins and traps are the primary structural measures used to capture sediment-laden runoff from disturbed areas before it reaches streams, wetlands, or adjacent properties. Improperly sized sediment basins — either too small to capture design storm runoff or too large for available space — are among the most common E&SC plan deficiencies.

We design sediment basins using state-specific design manuals, sizing impoundment volume based on drainage area, disturbed acreage, and local rainfall data. Outlet structure design controls the release rate to allow sediment settling while preventing uncontrolled overflow during storm events.

For sites with limited space or specific topographic constraints, we design sediment traps, rock check dams, and alternative structural measures that achieve equivalent sediment capture without requiring large impoundment areas. The selection of the most appropriate structural measure is driven by site conditions, not by default assumptions.

Post-construction sediment removal and basin close-out coordination is included as part of our E&SC service — we don't consider the job done until the permit is officially closed and the site is stabilized.

State Permitting & Agency Coordination

North Carolina's NPDES Construction General Permit (CGP) and the individual land disturbance permits required by local delegated programs have specific submittal requirements, review timelines, and compliance obligations. South Carolina's NPDES Construction Permit follows SCDHEC guidelines with different thresholds and reporting requirements. Failing to understand state-specific requirements leads to permit delays and compliance exposure.

Hagen Engineering manages the full permit submission process — preparing applications, coordinating with reviewing agencies, responding to deficiency comments, and obtaining final permit approval. Our experience with NCDEQ, local delegated programs, and SCDHEC means we understand what reviewers are looking for and design accordingly from the start.

When projects receive plan review comments, we respond promptly with technical documentation and revised plans that directly address each item. Our goal is to resolve comments in a single round of responses — not to engage in extended back-and-forth that delays your construction schedule.

Throughout the life of a project, we provide ongoing support as field conditions change, inspectors identify concerns, or construction activities deviate from the approved plan. Erosion control plans that adapt to field reality are plans that keep contractors in compliance.
